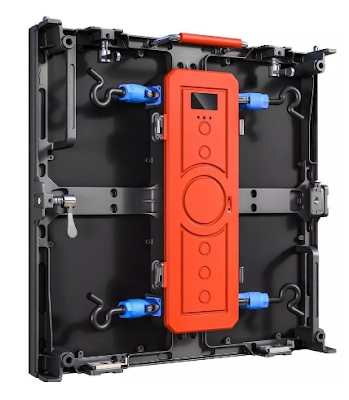

MagicPro HDSP Series LED MPR-1875-1515

   https://www.magicpro.asia

MagicPro HDSP Series LED MPR-1875-1515

Product Specification

Ultra-High Consistency Effect

Enhance Drive Level technology* fully guarantee the low grayscale, high uniformity of HDSP in use



Peerless Picture Effect

The low-brightness and high-brightness areas are corrected separately to ensure the consistency from low-brightness to high-brightness

“Cool” Screen

UMiniIII adopts ultra-cool screen technology, the temperature in front of the screen is as low as 38°C
(600 brightness, ambient temperature is 25°C)



Human-Friendly Experience

HDCP electromagnetic anti- interference ability has reached the consumer level

Human Eye Protection

HDCP can effectively reduce blue ray hazards and filter out stray light effects, minimization health hazards caused by long-term use of the screen，protect the eyes to the greatest extent and make the viewing more comfortable.

All-Round Protection

3H Protection Dust-proof Moisture-proof

Low Power Consumption

HDCP adopts the latest energy-saving technology, it can achieve maximum energy-saving effect whether in use or in standby

Super High Contrast

HDCP adopts multi-layer optical processing technology, which can display the ultimate pure black contents with super high contrast

• Ultra-low moiré

• Ultra-low reflectance

• Super soft display

• Ultra low touch trace











  The low-brightness and high-brightness areas are corrected separately to ensure the consistency from low-brightness to high-brightness















  Product Specification	MPR-1875-1515
  Pixel pitch	1.875 mm
  Pixel configuration	SMD 1515(Black Face)
  Pixel Per Module	128 x 128px
  Module resolution	16,384 pixels /35w
  Module size	240mm x 240mm x 15mm /350g
  Pixel density	284,444 pixels/m²
  viewing distance	2m – 30m
  Brightness	≥ 1200cd/m²
  Viewing angle	H:170 V:160
  Cabinet Pixel Matrix	256 x 256 / 65,536 pixels
  Cabinet size	480 x 480 x 65mm
  Cabinet Material	Aluminium magnesium alloy
  Cabinet weight	6.5 kg
  Color	16.7 million
  Brightness control	Manual 100 levels, automatically 16 levels.
  Display Refresh rate	3840Hz / 5120Hz / 7660Hz
  Driving method	1/32 dynamic scan
  Power Voltage/Frequency	AC 95~250v / 47-63Hz
  Max Input Power	600w / 2.73A / sq.m
  Average Input Power	220w / 1A / sq.m
  Working temperature	-10°C ~ 55°C
  Working humidity	10% ~ 75%
  Lifespan	100,000
  Application	IP40
  Dot Defective rate	≤0.0003
  Maintenance mode	Back service
